丝杆导轨配套件
|
型号
|
适用滚珠丝杆直径范围
|

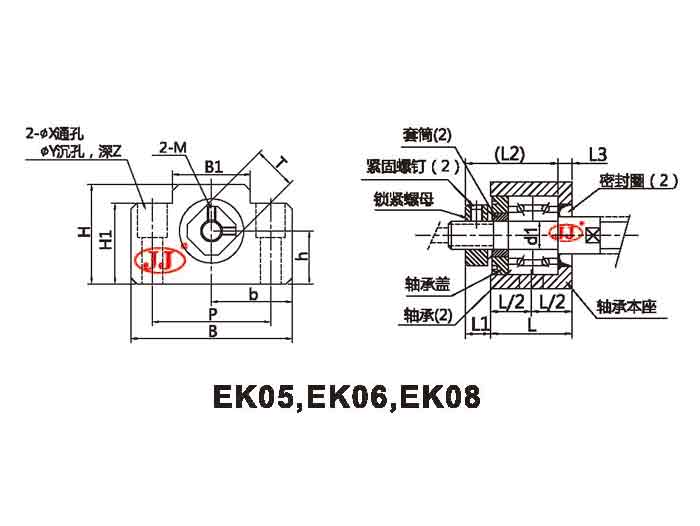

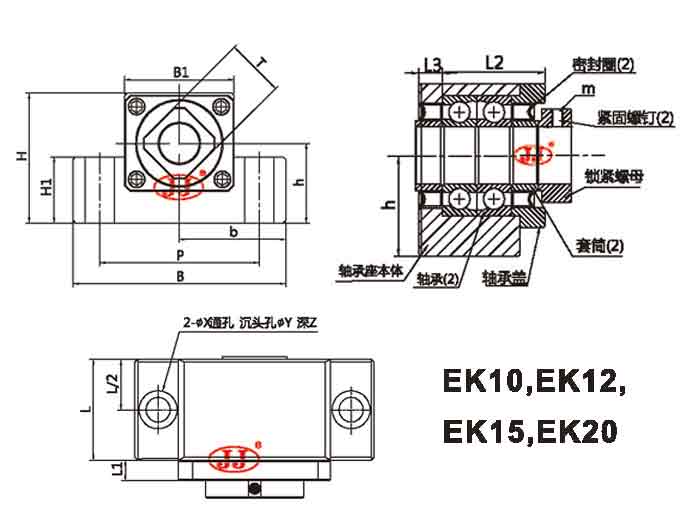

EK型支撑端轴承座型号及尺寸表
|
| 轴径 |
L |
L1 |
L2 |
L3 |
B |
H |
b ±0.02 |
h ±0.02 |
B1 |
H1 |
P |
X |
Y |
Z |
m |
T |
库存 |
|
EK05
|
6/8
|
16.5
|
16.5
|
5.5
|
18.5
|
3.5
|
36
|
21
|
18
|
11
|
20
|
8
|
28
|
4.5
|
/
|
/
|
M3
|
11
|
-
|
|
EK06
|
6/8/10
|
20
|
20
|
5.5
|
22
|
3.5
|
42
|
25
|
21
|
13
|
18
|
20
|
30
|
5.5
|
9.5
|
11
|
M3
|
12
|
○
|
|
EK08
|
8/10/12
|
23
|
23
|
7
|
26
|
4
|
52
|
32
|
26
|
17
|
25
|
26
|
38
|
6.6
|
11
|
12
|
M3
|
14
|
○
|
|
EK10
|
12/14/15
|
24
|
24
|
6
|
29.5
|
6
|
70
|
43
|
35
|
25
|
36
|
24
|
52
|
9
|
/
|
/
|
M3
|
16
|
○
|
|
EK12
|
14/15/16
|
24
|
24
|
6
|
29.5
|
6
|
70
|
43
|
35
|
25
|
36
|
24
|
52
|
9
|
/
|
/
|
M4
|
19
|
○
|
|
EK15
|
18/20
|
25
|
25
|
6
|
38
|
5
|
80
|
49
|
40
|
30
|
41
|
25
|
60
|
11
|
/
|
/
|
M4
|
22
|
○
|
|
EK20
|
25/28/30
|
42
|
42
|
10
|
52
|
10
|
95
|
58
|
47.5
|
30
|
56
|
25
|
75
|
11
|
/
|
/
|
M4
|
30
|
○
|
